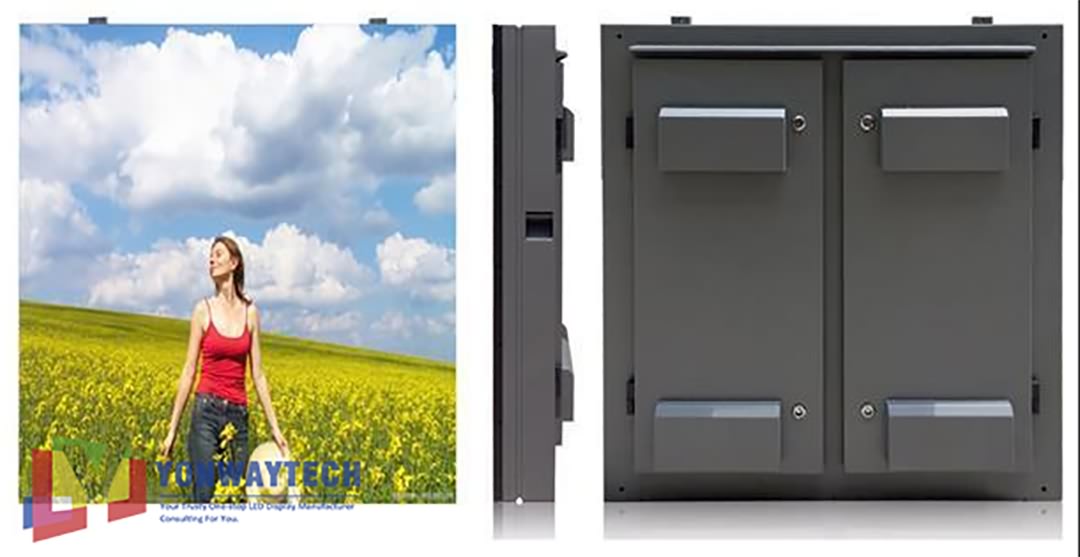

Wajen HD Kunkuntar Pixel Pitch 2.5mm LED Nunin allo, Talla Dboard Billboard
Kyakkyawan hukuma mai kyau ba tare da ɓoyayyun rashi tsakanin ɗakunan majalisar ba.
Aikin rashin nakasa ya kiyaye allon a cikin sifa mai kyau da kuma sauƙi.
Aerofoil fan sanyaya nan da nan, magoya 4 an sanya su a cikin kowane mamba na 2.5mm, ƙarar iska yana da mita mai siffar sukari 5,6 a minti ɗaya, yanayin iska yana gudana sau 20 cikin minti kaɗan a cikin jagorancin majalisar. High dace sanyaya.
Zaɓin majalisar A:
Kayan ƙarfe na ƙarfe tare da magani mai zafi, wanda aka rufe shi da fim mai hana ruwa, zai iya tsawanta rayuwar sabis, haɓaka haɓakar zafi.
Bugu da kari, majalisar hukuma na da tsananin tauri, iska mai kyau da kuma juriya mai sanyi, na iya tsayayya da guguwa ta 12.
Za'a iya daidaita girman gidan nuni na waje na LED.
Zaɓin majalisar B:
Mutuwar ingaƙƙarfan Aluminiya mai nauyin nauyi Magnesium Alloy Domin Gyarawa da Shigar da Allon Hayar.
Matsakaicin nauyi mai nauyi da siriri hukuma, 960mm × 960mm × 100mm tare da 26kg / hukuma kawai.
Esungiyoyi masu saurin kullewa da gano fil mai sauƙi a cikin aiki.
Ana iya amfani dashi ko'ina don aikace-aikacen gida da waje don tsayayyen ko amfani da haya.

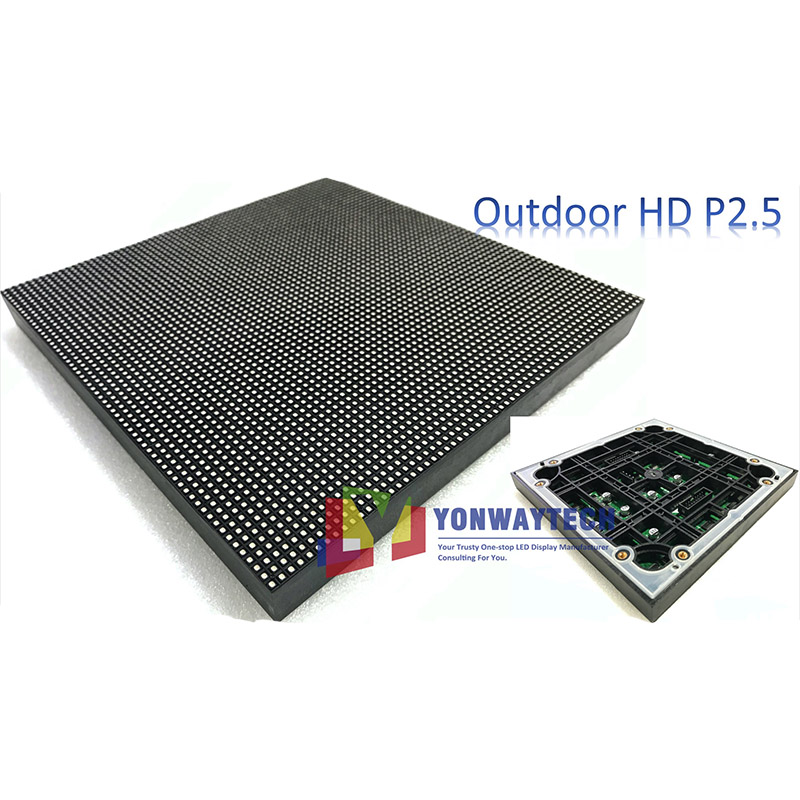

Babban misali 320mm × 160mm LED module kaga a 960mm × 960mm × 100mm mutu Fitar aluminum magnesium gami hukuma akwai pixel farar a p2.5 / p3 / p3.3 / p4 / p5 / p6 / p6.67 / p8 / p10 …… don waje amfani.
![T8]$17M(1B(IRF4`_C14HQA](https://www.yonwaytech.com/uploads/T817M1BIRF4_C14HQA.png)

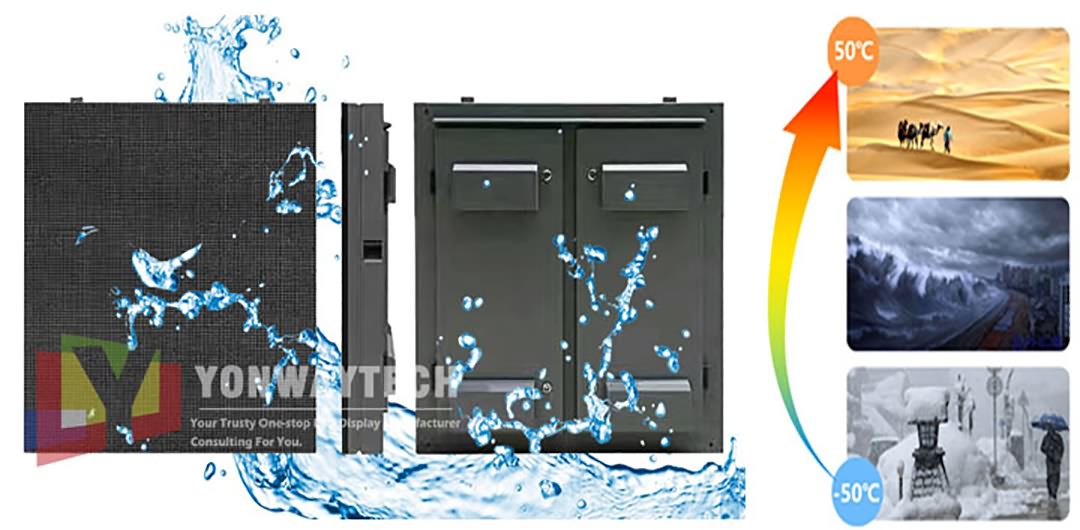

Kyakkyawan rukunin ruwa mai zaman kansa mai ɗorewa da shinge mai hana ruwa tare da kyakkyawan aikin hatimi don kare kabad, wanda shine cikakkiyar ƙura, mai hana ruwa da lalata lahani, kuma matakin kariya yana zuwa IP65.
Duk-yanayi don yanayin waje, na iya aiki lami lafiya a kowane yanayin yanayi.
Babban matakin kariya na IP65 na garantin, karko, aminci, Anti-ultraviolet da kwari.
Hannun dubawa ya kai 140 ° a tsaye kuma 120 ° a kwance, yana ba da kusurwar kallo mai faɗi.
Matsakaicin faɗin kallo mai faɗi yana ba ku mafi girman yankin kallon allo, ƙwallon ido yana kamawa.
Sashin fasaha:
Y-Of2.5-160 × 160-1 / 16-V01

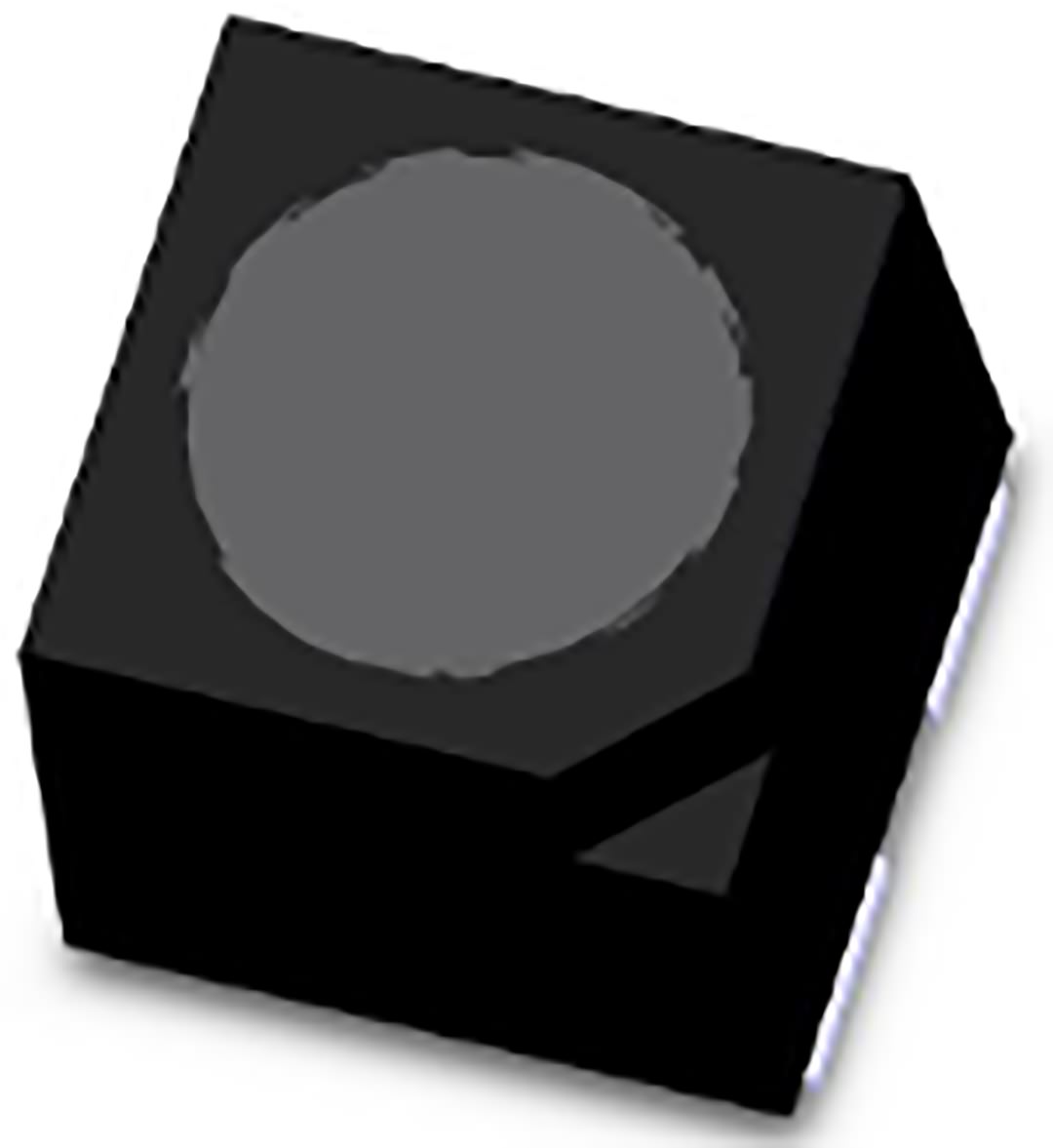

LED Chip Musammantawa
|
Color |
Mna iska |
Ckwatangwalo |
Branda |
Wrama |
Duba kwana (deg.) |
Pyadin da aka saka na Asali |
|
Tagwayen Nationstar |
 |
Taswirar kasa |
620-625 |
Horz .: ≥120° |
PRChina |
|
|
515-535 |
||||||
|
460-475 |
LED Nuna Musammantawa
| Nitem | TeMatsayi mai mahimmanci |
| Kwamitin A'a | Y-Of2.5-160 * 160-1 / 16-V01 |
| LED Nau'in | Nationstar SMD 1415 (Hasken haske na Kinglight) |
| Pixel Farar | 2.5mm |
| Pixel Kanfigareshan | SMD 3 A cikin 1, 1R1G1B |
| Module Girman | Horz.: 160mm × Tsayawa.: 160mm × Thk.: 16.5mm |
| Module Resolution | Horz.: 64da digo ert Tsaya .: 64da dige |
| Dgaskiya | 160000dodin / m2 |
| Bdaidai | 6000nits / m2 |
| Siya Magani | Kullum 1/16 |
| Drive IC | ICN2038S & 2160Hz PWM, 3840Hz Zabi. |
| Bambanci Ratio | 3000: 1 |
| Power Amfani | ≤1200W / m2 (MAX), -380W / m2 (AVG) |
| Net Wtakwas | 270G / Module, 50KG / m2 Majalisar zartarwa |
| GRay Scale | 16Bit |
| Color | 281 Tiriliyan |
| RDarajar kuɗi (Hz) | 1920Hz — 3840Hz |
| Duba Angle | Horz .: 140, Bayani. 1.20 |
| Zazzabi mai launi | 6500K |
| Frame Yanayin | ≥60Hz |
| Rimar Kasawa | ≤1 / 1,000,000 |
| MTBF | Ou 10,000 awowi |
| CYanayin ontrol | ASYNC Ta WIFI / 4G, SYNC VIA PC Ta USB / Net / HDMI Zabi |
| Nisa Mafi Kyawu | ≥3m |
| Control Distance | CAT 5: -120m; Multi Mode Fiber≤500m; Sigle Mode Fiber≤20km; |
| Aiki da yanayin zafi / zafi (℃ / RH) | -20 ～ 60/20% ～ 85% RH (BABU BAYANIN SAURARA) |
| Ma'ajin Zazzabi / zafi (℃ / RH) | -20 ～ 60/20% ～ 85% RH (BABU BAYANIN SAURARA) |
| DYanayin isplay | 1024 * 768,2K, HD, 4K, 8K |
| MKula da Yanayi | Na baya |
| Buƙatar Supparfin Wuta | AC90 ~ 264V, Yanayin 47 ~ 63 (Hz) |
